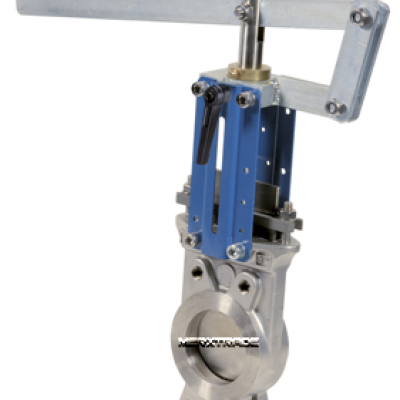

FTD-G with Lever UFT -EPM

Model: Knife gate valve Material body: Stainless steel CF8M 316
Actuating: Lever operated Material wedge: Stainless steel CF8M 316
Connection: Between flanges PN10 Material seat: EPM
Temperature: -15 ° C / + 110 ° C
Pressure: DN50 up to DN200 PN10 Pressure: DN250 PN8   DN300 PN6 DN350/400 4bar
Click to add this item to cart.
