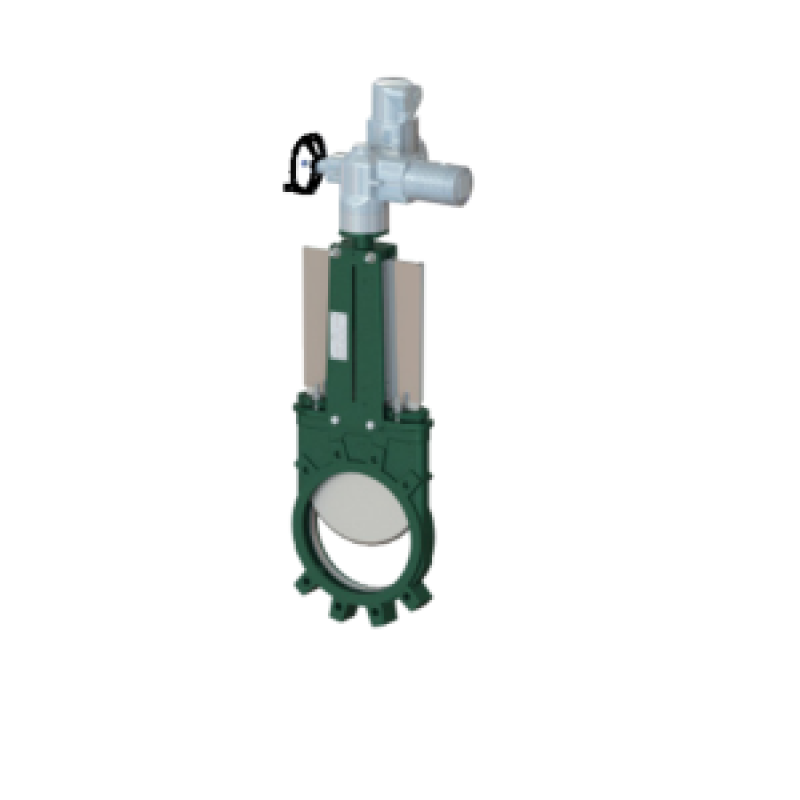

FTD-GD electric UBR drill PN10
| Model: | Uni-direct knife gate valve | Material body: | Ductile iron GGG50 |
| Connection: | Flanged PN10 | Material disc: | St.St. AISI 304 check PDF |
| Temperature: | -10°C / +80°C | Material seat: | NBR |
| Pressure: | up to DN250 10 bar > see PDF | Actuating: | Auma actuator 230 Volt AC |
| Electric actuator | AUMA SA Multi turn | ||
| IP code: | IP 68 | Temperature: | Ambiant -25°C / +55°C |
| Power: | 230 Volt AC | Model: | SA |
| Body material: | Aluminium epoxy | Duty factor: | S4-25% / 10 cycles by hour. |
Click to add this item to cart.
See also different:
FTD-G with Lever UFT -EPM
Model: Knife gate valve Material body: Stainless steel CF8M 316 Actuating: Lever operated Material wedge: Stainless steel CF8M 316 Connection: Between flanges PN10 Material seat: EPM Temperature: -15 ° C / + 110 ° C Pressure: DN50 up to DN200 [...]
