FTD-GD Zt.Zt.345-EPM

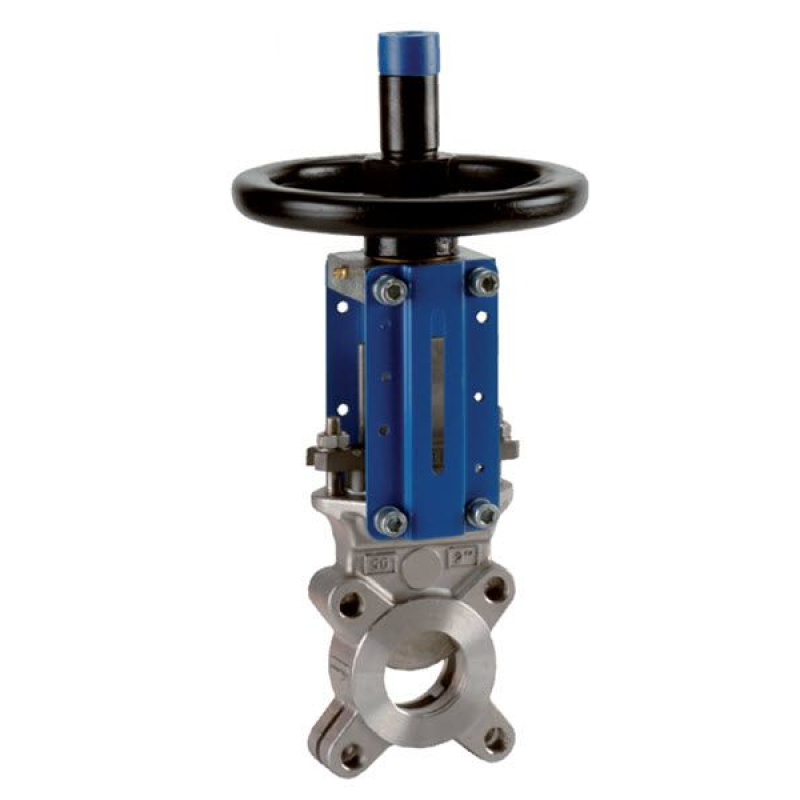

| Model: | Knife gate valve | Material body: | Stainless steel CF8M 316 |
| Actuating: | Handwheel operated | Material wedge: | Stainless steel 316 |
| Connection: | Between flanges PN10 | Material seat: | EPDM |
| Temperature: | -20 ° C / + 130 ° C | ||
| Pressure: | DN50 up to DN200 PN10 | Pressure: | DN250 PN8 DN300 PN6 |
