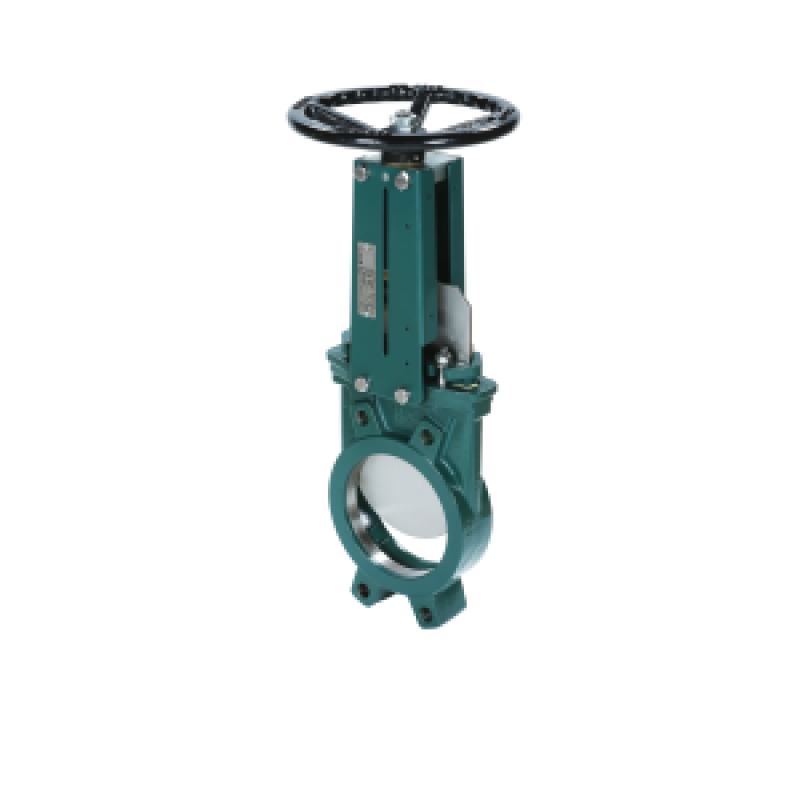

FTD Non-RES D300 / PTFE PN10

Model: Uni-directional Material body: Ductile iron EN-GJS-500-7
Connection: Flanged-wafer PN10 Material gate: Stainless st. A 182 AISI 304
Temperature: -10°C / +170°C Material seat: PTFE
Pressure: DN50 – DN250    10 bar Actuating: Handwheel
DN300- DN450    7 bar Actuating: Non-rising stem
DN500 – DN600   4 bar Other info: Check data sheet
Click to add this item to cart.

See also different:

FTD-GD / SS AISI 316 + EPDM PN10
FTD-GD / SS AISI 316 + EPDM PN10

Model: Unidirectional Material body: Stainless steel 316 - ASTM A351 - CF8M Connection: Between flanges PN10 Material gate: Stainless steel AISI 316 Pressure: 10 bar till DN125 > see PDF Material seat: EPDM + Stainless steel AISI 316 gland [...]

Ductile iron PN10 | EN-GJS-500-7 FTD-GD
Ductile iron PN10 | EN-GJS-500-7 FTD-GD

Model: Bidirectional Material body: EN-GJS-500 Connection: Between flanges PN10 Material gate: Stainless steel AISI 304 Pressure: 10 bar > see PDF Material seat: Natural rubber Temperature: 0°C  +90°C

FTD-GD Zt.Zt.345-EPM
FTD-GD Zt.Zt.345-EPM

Model: Knife gate valve Material body: Stainless steel CF8M 316 Actuating: Handwheel operated Material wedge: Stainless steel 316 Connection: Between flanges PN10 Material seat: EPDM Temperature: -20 ° C / + 130 ° C Pressure: DN50 up to DN200 [...]
