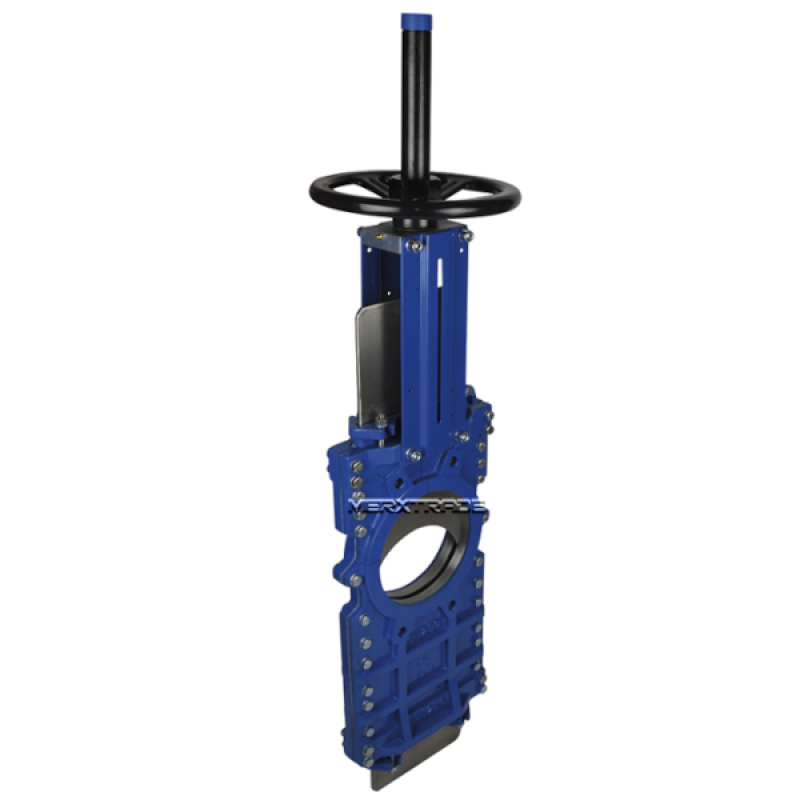

GG 308 | FTD S-gate + EPDM

Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat

Model: Through conduit bidirectional Material body: Cast ironEN GJL-250
Connection: Wafer Material gate: Stainless steelAISI 304
Pressure: DN50-125=10 bar > see PDF Material seat: EPDM (NBR on request)
Temperature: -15°C / +130°C EPDM Operation: Non-rising handwheel

Note: Dn 50-65 and DN 400 and above on request.

Click to add this item to cart.

See also different:

FTD Non-RES D300 / PTFE PN10
FTD Non-RES D300 / PTFE PN10

Model: Uni-directional Material body: Ductile iron EN-GJS-500-7 Connection: Flanged-wafer PN10 Material gate: Stainless st. A 182 AISI 304 Temperature: -10°C / +170°C Material seat: PTFE Pressure: DN50 - DN250    10 bar Actuating: Handwheel DN [...]

FTD-GD / SS AISI 316 + EPDM PN10
FTD-GD / SS AISI 316 + EPDM PN10

Model: Unidirectional Material body: Stainless steel 316 - ASTM A351 - CF8M Connection: Between flanges PN10 Material gate: Stainless steel AISI 316 Pressure: 10 bar till DN125 > see PDF Material seat: EPDM + Stainless steel AISI 316 gland [...]

Ductile iron PN10 | EN-GJS-500-7 FTD-GD
Ductile iron PN10 | EN-GJS-500-7 FTD-GD

Model: Bidirectional Material body: EN-GJS-500 Connection: Between flanges PN10 Material gate: Stainless steel AISI 304 Pressure: 10 bar > see PDF Material seat: Natural rubber Temperature: 0°C  +90°C
