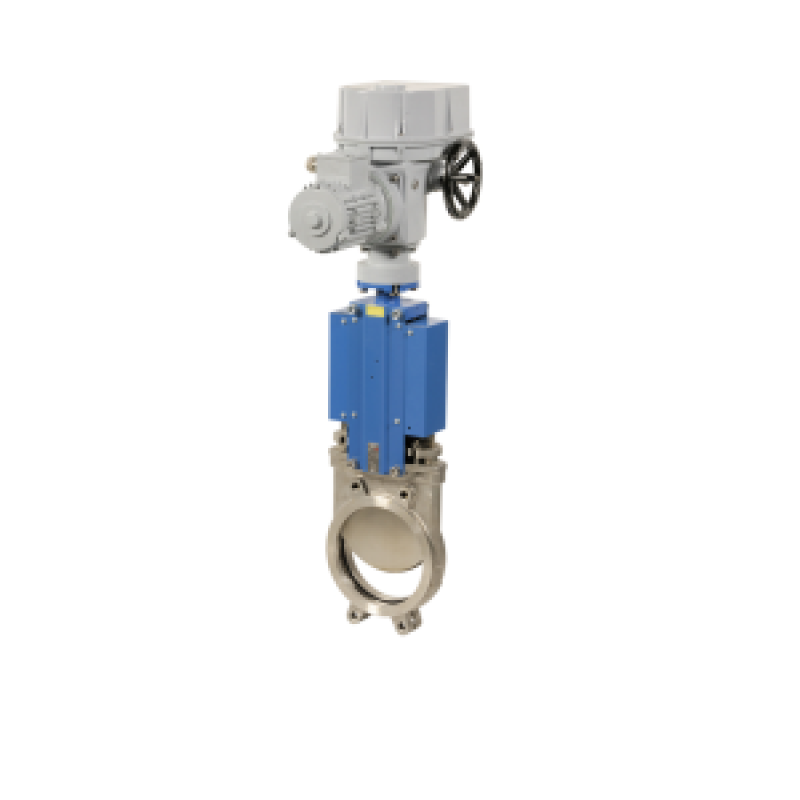

Stainless steel 316 IP67 – UNI-Directional
| Model: | Knife valve | Size range | DN 50-300 mm |
| Disc type: | Gate UNI-Directionnal | Material body: | CF8M |
| Connection: | Wafer with bolt holes | Material disc: | Stainless steel 316 |
| Operation: | Electric multi turn | Material seat: | Metal |
| Pressure rating: | DN50-200=10bar 250=8bar 300=6bar | Temperature: | 0 °C / + 100 °C. |
| Flange connect | PN10 | A ctuator brand: | Regada |
| Actuation: | 230V AC IP67 | Safety overdrive: | Handwheel |
| Actuator model: | SO2=DN50-150 MO3=DN200-300 | Protection rate: | IP67 |
Click to add this item to cart.
